as i was getting the center console out today i thought about making a guide for a fan overide switch

i wanted to make it look better so while i had the cig lighter out i drilled a hole for the switch to sit in





now for wiring i did a quick sketch


quick wiring guide

black is + positive
brown is - negative

if the colours dont match follow one of the wires it should lead you to the earth near the fuse box

i got the 20amp fuse off ebay for less than £5

and got the wire connections from a local electrical place for about £1

i did use these but they were ****
http://www.google.co.uk/imgres?hl=en&client=firefox-a&sa=X&pwst=1&rls=org.mozilla:en-GB:official&channel=np&biw=1680&bih=953&tbm=isch&prmd=imvns&tbnid=MK-DtVKWN0HXzM:&imgrefurl=http://www.tyresmoke.net/forum/tuning-tuners/130431-crimp-electrical-connectors.html&imgurl=http://www.gordonrichards.net/300zx/foglight.splice.connector.jpg&w=900&h=675&ei=k3g6UOSOL82Z0QWS84Ao&zoom=1&iact=rc&dur=243&sig=104857831880693655539&page=2&tbnh=144&tbnw=194&start=40&ndsp=49&ved=1t:429,r:25,s:40,i:280&tx=103&ty=26

so used theses
http://www.google.co.uk/imgres?hl=en&client=firefox-a&rls=org.mozilla:en-GB:official&channel=np&biw=1680&bih=953&tbm=isch&tbnid=sbU4ByhVouQCAM:&imgrefurl=http://www.gtplanet.net/forum/showthread.php?t=221333&imgurl=http://img.alibaba.com/wsphoto/v0/327064284/Wire-Connector-12-Position-Terminal-Block-10A-DQ136.jpg&w=400&h=400&ei=aXg6UOieB-rB0QWPwYH4Dw&zoom=1&iact=rc&dur=292&sig=104857831880693655539&page=1&tbnh=139&tbnw=135&start=0&ndsp=40&ved=1t:429,r:1,s:0,i:73&tx=110&ty=45

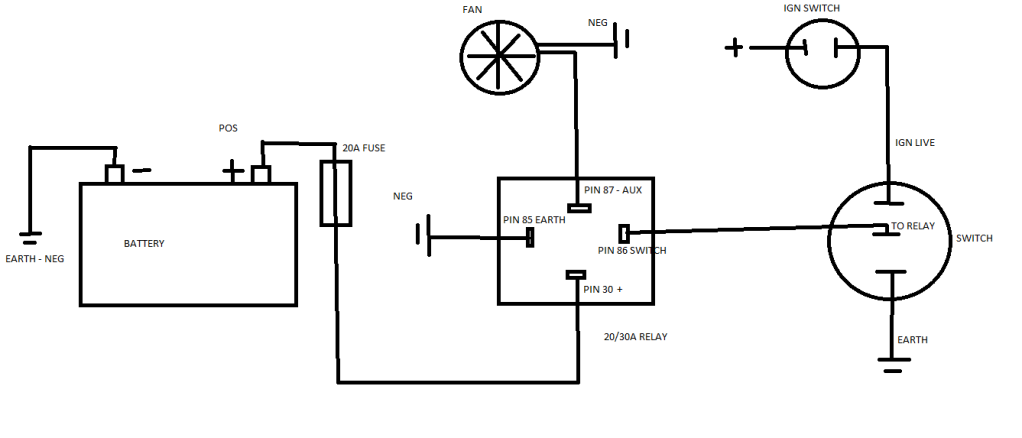

the other way is threw a relay see below



ps i did it the 1st way for over 2 years now and the car hasnt set on fire

thanks for looking

ps i hold no responsibility if you try this on your own car and you mess it up but this is how i did mine above

pps please move if its in the wrong section

cheers kev
