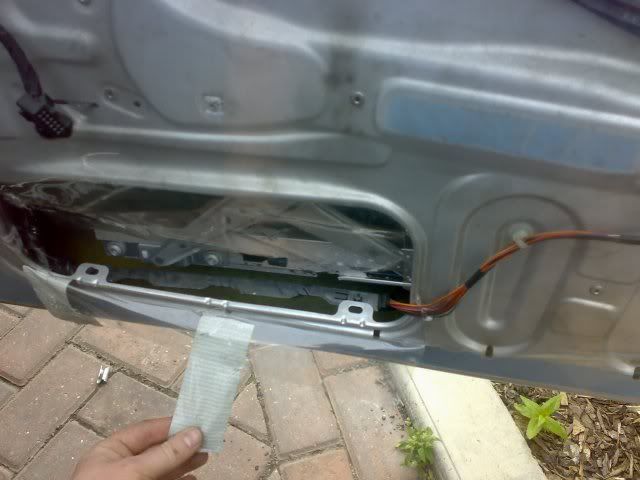

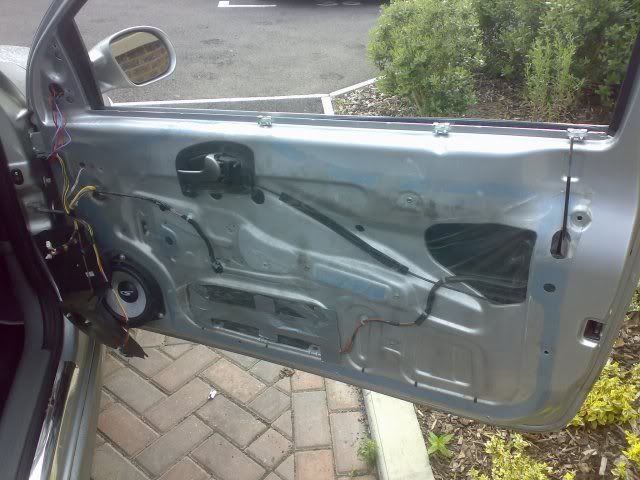

WIRING IS AS FOLLOWS -

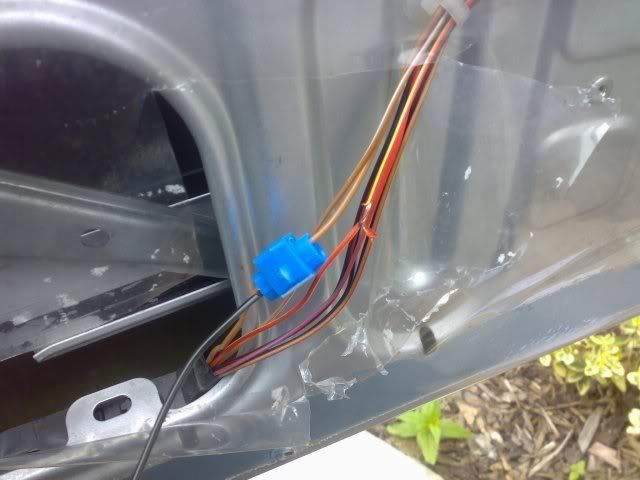

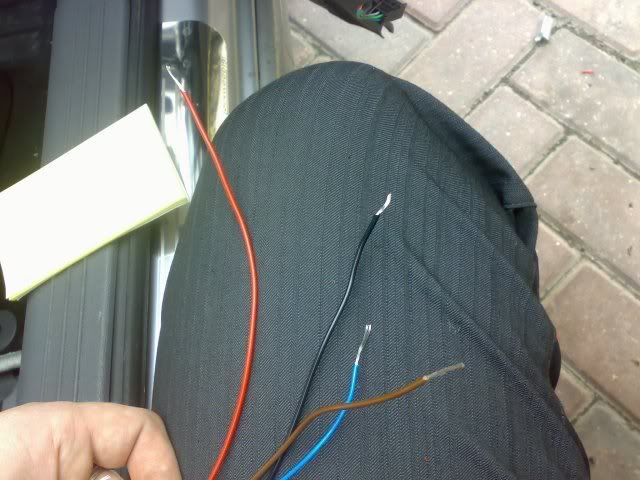

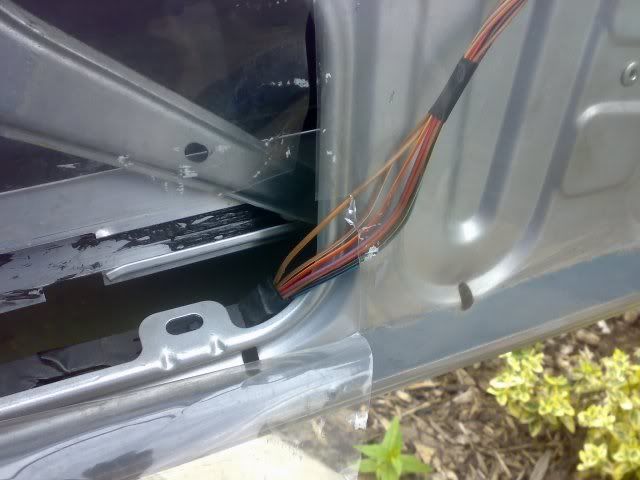

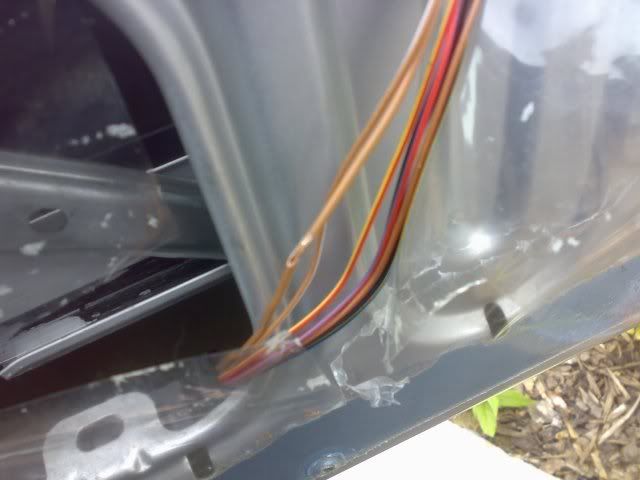

connect up the tc's brown wire to the cars red +yellow wire,
connect up the tc's blue wire to the cars blue+black wire
connect up the tc's black wire to the cars brown wire
connect up the tc's long red wire to the cars thick red wire (Perm +12v electric window supply)

leave short wire unless you want to wire into the fues box (no need as already got fuse in unit!)


·
Registered
Joined
·
35,110 Posts
nice tutorial Hoops, word of advice though mate. Get rid of the scotch locks and use crimped connectors instead ;) its a much more reliable way of doing it. The scotch locks arent that great due to how thin the wires are.


·
Registered
Joined
·
1,336 Posts
wouldnt it even be better to just twist n black tape together?

will probably look better as well?


·
Registered
Joined
·
6,358 Posts
wouldnt it even be better to just twist n black tape together?

will probably look better as well?
youd have to cut the wire to do that. with the scotch blocks you can take them off to remove the tc, and it wont leave much evidence. plus its behind the door anyway so wont be seen


·
Registered
Joined
·
19,069 Posts
Discussion Starter · #8 ·
nice tutorial Hoops, word of advice though mate. Get rid of the scotch locks and use crimped connectors instead ;) its a much more reliable way of doing it. The scotch locks arent that great due to how thin the wires are.
TBH the unit isnt working yet :sick:

Unit powers up but doesnt do the windows up. Am pretty sure ive just wired one wire up wrong, long and short red...David @ totalclosure.com doesnt have a clue. Got a secret weapon coming round this evening to take a look! ;)


·
Registered
Joined
·
1,336 Posts
help same problem here... powers up n nothing.... do you have an alarm fitted jrhoop?


·
Registered
Joined
·
35,110 Posts
TBH the unit isnt working yet :sick:

Unit powers up but doesnt do the windows up. Am pretty sure ive just wired one wire up wrong, long and short red...David @ totalclosure.com doesnt have a clue. Got a secret weapon coming round this evening to take a look! ;)
did you program the unit mate? once the unit is fitted, turn ignition on, take windows down, then take up again and hold up button for 5-6 seconds. To test, take them down, keys out of ignition lock and should work ;)


·
Registered
Joined
·
1,336 Posts
well ladies ive sorted mine out hopefully anyone with same problem... this will help

you have to put everything back together for it to work for some reason.... if you are unsure if you have wired correctly though wind down your passenger side and then lock car... should work!

if not then you havent got wiring properly

gd luck


·
Registered
Joined
·
1,315 Posts
im new to all of this so excuse me lol but.... is this the kit that when you turn your engine off and lock your car, your windows automatically go up?

thanks


·
Registered
Joined
·
1,757 Posts
im new to all of this so excuse me lol but.... is this the kit that when you turn your engine off and lock your car, your windows automatically go up?

thanks
aye, on the second press of the fob you hold the button and it activates the total closure


·
Registered
Joined
·
19,069 Posts
Discussion Starter · #19 ·
Bigdog -

  1. Which wires did you connect to which?

    TC brown ->
    TC blue ->
    TC black ->
    TC long red ->
    TC short red ->

  2. Did you connect the long red or short red? Is the other connected to any other wire?

  3. Did you have a grey and white wire running through the plastic gaitor?


·
Registered
Joined
·
9,925 Posts
What wires in the car do what,
1) which colour is windows going up
2) which colour makes windows go down
3) which is the trigger wire
??
